DIMENSIONS

Dimensions(GRP Cylindrical Horizontal Water Tanks)

Capacity U.S Gallon Length C.M. Width C.M. Height C.M. No. of. Legs
250 135 112 112 2
300 154 110 110 2
400 180 130 120 2
500 195 130 142 2
600 203 135 145 2
800 207 150 165 2
1000 227 160 175 2
1200 245 170 190 2
1500 287 180 180 3
2000 285 225 235 2
2500 315 225 235 2
3000 385 225 235 2
4000 485 225 235 4
5000 590 225 235 5

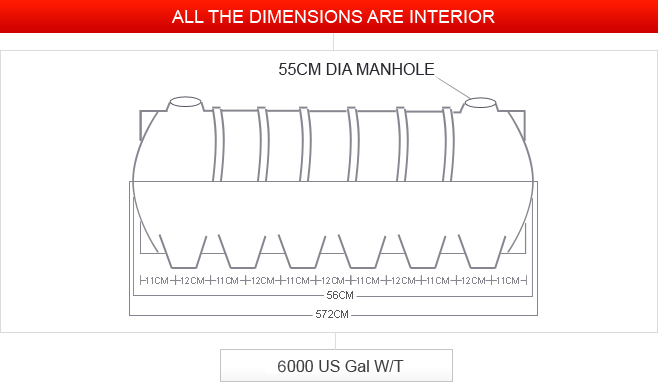

6000 572 250 250 6
10000 735 285 280 6
15000 1050 285 280 9
35000
FRP Water Tanks

Plastic Vertical Tanks Model - Star

Code No. U.S Gallon Dia (mm) H-1 (mm) Total Height (mm) Threaded Manhole (mm) Approx. Wall Thick (mm)
PS-2 200 1050 1000 1160 420 5
PS-3 300 1150 1160 1350 420 6
PS-4 400 1305 1350 1525 420 6
PS-5 500 1325 1490 1690 420 6
PS-6 600 1470 1350 1650 420 8
PS-8A 800 1510 1960 2185 420 8
PS-8 800 1660 1380 1760 420 8
PS-10 A 1000 1635 1830 2080 420 8
PS-10 1000 1880 1320 1680 420 8
PS-12 1200 1930 1555 1935 420 8
PS-15 1500 2020 2105 2405 420 9
PS-20 2000 2120 2120 2520 420 10
PS-30 3000 2400 2500 3000 420 10
PS-40 4000 2600 2880 3280 420 12
PS-50 5000 2900 2880 3280 420 12

Plastic Horizonta Tanks

Code No. U.S Gallon Dia (mm) Length (mm) Threaded Manhole (mm) Approx. Wall Thick (mm)
PH-3 300 960 1655 420 6
PH-4 400 1125 1625 420 7
PH-5 500 1155 1960 420 8
